Cooling Tower

Cooling tower is a distinctive variety of heat exchanger that enables water and air to interact with one another bringing down the water temperature.
Our products are high efficiency, superior corrosion resistance, low noise, environmental protection, easy installation, simple operation, and robust in performance.

Cooling Tower

Super Tower Industries Cooling tower is a distinctive variety of heat-exchanger that enables water and air to interact with one another to bring down the water temperature from the higher temperature. Amid this procedure, little volumes of water dissipate, bringing down the temperature of the water that is being flowed all through the cooling tower. In short, a cooling tower cools down water that gets over heated by industrial equipment and procedures.

We offer mostly the common induced draft cooling tower systems that are generally used in large office buildings, hotels, hospitals, shopping malls and even in other industrial processes and facilities.

Crossflow Cooling Towers

BHD Series (Low Noise and Standard Low noise Square Type)

Counter Flow Cooling Towers

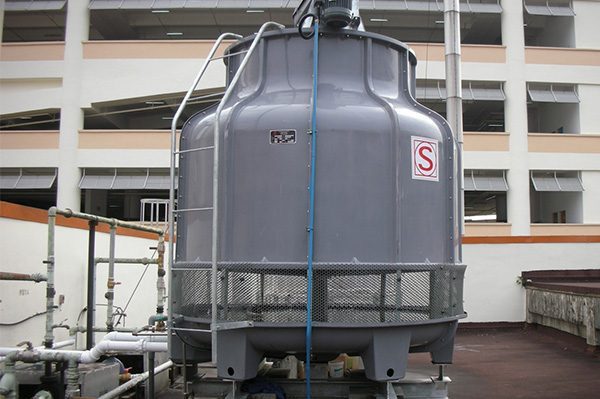

BND Series (Standard Low Noise Round Type)
FBND Series (Low Noise Square Type)
FBNZ Series (High Temperature Square & Round Type)
FBNG Series (Super High Temperature Square

PRINCIPLE OF OPERATION

The Dry Cooling Tower consists of Air Cooled fluid coolers, through which the water is circulated. The atmospheric air is forced through the aluminum foil fins by induced draft mechanism. The heat from the water is taken away and ejected to the air thus cooling the water temperature. This operates on the principle of heat transfer by a heat exchanger with extended fins

Dry Cooling Towers

Dry Cooling Tower incorporates the shell and tube type design with copper tubing & aluminum foil fins. The water losses are 0.01%, a closed-loop tower which is sustainability and environmental friendly. Dry cooling towers operates with minimum amount of water in the entire process with high efficiency of heat transfer. High volume of air passing thru from the louvers onto the large surface of heat-exchange coils. High volume of heat are effectively drawn out by the high speed fans.

CLOSED CROSS FLOW COOLING TOWER

Closed Circuit Cross-flow Cooling Towers are designed for high efficiency with easy installation and low maintenance. Application for cooling of circulating water, oil or other process fluid for HVAC System, Compressors, Furnaces, Data Centres, Heat Pumps, Power Generators, Transformers, Converters, Refrigerators

CLOSED COUNTER FLOW TOWERS

This Cooling Towers tend to be more compact, taking less installation space, working without any wet deck fill, therefore it is more suitable to cool down hot-water from higher condenser inlet temperature. The dimensions can be customized to suit standard containers or particularly for temporary site condition Application for cooling circulating water, oil or other process fluid for Melting / Vacuum / Multi-crystal Furnaces, Induction Heaters, Compressors, Heat Pumps, Metal Parts Production Lines, Hydraulic Stations, Power Generators, Transformers, Converte

EVAPORATIVE TOWERS

Evaporative Cooler are designed for cooling of the process fluids for gas refrigerant. It utilize the evaporation of moisturized water to absorb the heat from the high temperature inlet of the refrigerant In the evaporative cooling system, the compressor discharges high pressure evaporated refrigerant in gas form, which passes through the heat-exchange coils, this process will transformed the gas refrigerant to liquid form. The high static fan continuously drawn the hot-air out from the wet-infill & drift eliminator.



Super Tower Industries also offers custom-made cooling towers in order to meet certain site conditions example: space area, height, environmental requirement and etc.

With our technology and experience over the years, we have launch our latest Environmental-friendly Cooling Tower that enable the system to detect and prevent legionnair's disease through our IOT Smart control system


Super Tower Industries offers high quality services, spare parts and long-term cost efficient solution to our clients thus helping us to become one of the reliable service provider across the country

Smart Cooling Tower System

  • Cooling Tower System are well managed and maintained, with our intelligent automation system the accurate and accessible energy monitoring optimised the equipment to its optimal performance
  • Our IoT Smart Control Technology will enhancement the performance on Chiller and Cooling Tower systems which improved the energy usage of the existing air-conditioning system.
  • Scheduling for CT and pump for daily operation and rotation
  • Reduce system downtime as the IoT Smart Control able to perform remote CONTROL & MONITORING capability via local or remotely.
  • Auto Schedule that reduce manpower operation. √ Real time system report and data trending
  • Predictive and Preventive measurement
  • Auto-detection for system performance, malfunction of motor, failure of fan assembly and belt motor
  • System messaging for service team for repair
  • Seamless integration to existing control system
